Diamond Stone Cut® Retaining Wall System, Casual Face

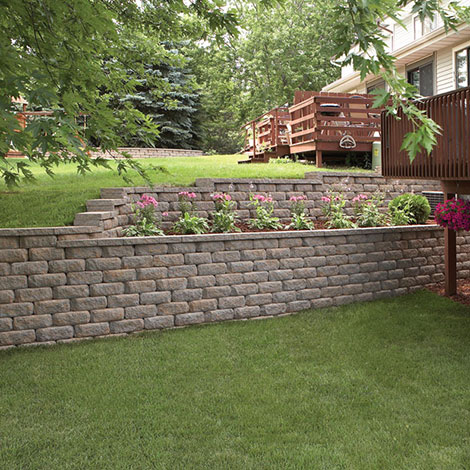

Created at the request of the contractors who rely on the rugged dependability of the Diamond® retaining wall system, the Diamond Stone Cut Retaining Wall System, Casual Face brings warmth and character to any landscaping project. The rounded, rough-hewn face creates walls that are both pleasing and functional.

Project Applications

  • Planters
  • Raised Patios
  • Staircases
  • Terraced Walls

System Performance

Max. Gravity Wall Height: 4’6”

System Batter: 10.6°

Min. Inside Radius: 4’0”

Min. Outside Radius: 2’0”

How to Build a Concrete Block Retaining Wall: Outside 90 Degree Corner
Learn how to build a retaining wall with an outside 90-degree corner by following our step-by-step instructions. Visit www.anchorwall.com for more information.
View All Videos

Available Units

Actual dimensions and weights may vary from these approximate values due to variations in manufacturing processes. Specifications may change without notice. Please visit your dealer for color options, block dimensions and additional information.

Block

Height: 0’6”
Front Length: 1’3.88”
Depth: 1’0”
Weight: 69lbs
Front Coverage: 0.66 sq. ft.
Setback: 1.125

XL™ Cap

Height: 0’3”
Front Length: 1’6”
Depth: 1’1”
Back Length: 1’0”
Weight: 44lbs
Front Coverage: 0.38 sq. ft.

ShortCut® Split Cap

Height: 0’3”
Front Length: 0’8”
Depth: 1’1”
Back Length: 0’7”
Weight: 23lbs
Front Coverage: 0.17 sq. ft.

Step

Height: 0’6”
Front Length: 1’4”
Depth: 1’0”
Back Length: 1’4”
Weight: 89lbs
Front Coverage: 0.67 sq. ft.

Torpedo® Base Block

Height: 0’4”
Front Length: 1’3.75”
Depth: 0’11”
Weight: 47lbs
Front Coverage: 0.44 sq. ft.
