Retaining Wall Design Considerations
Segmental retaining walls that are gravity wall height and taller can be designed several ways. Need help determining which retaining wall reinforcement option is best for your project? Contact us
Retaining Wall Design Options

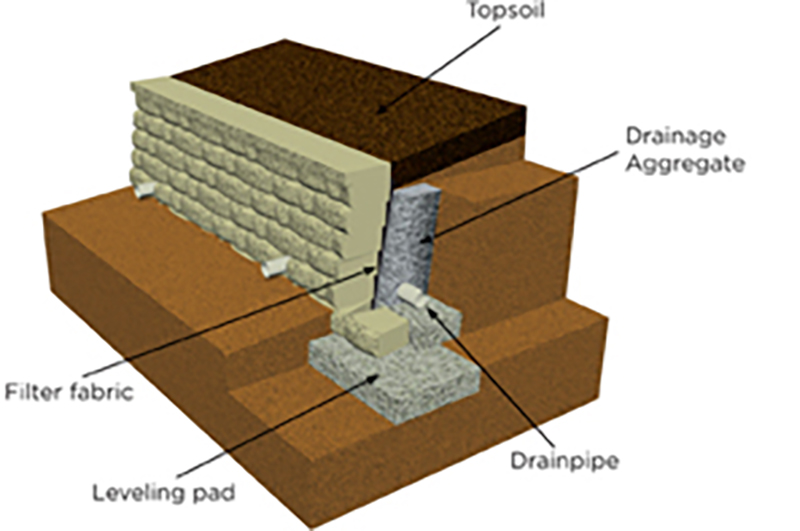

Gravity Retaining Wall
Gravity Retaining Wall
A gravity wall is a retaining wall that does not use soil reinforcement. A gravity retaining wall has height limitations specific to each product. A gravity retaining wall design relies on the weight and setback of the block to resist the soil forces being exerted on the wall.

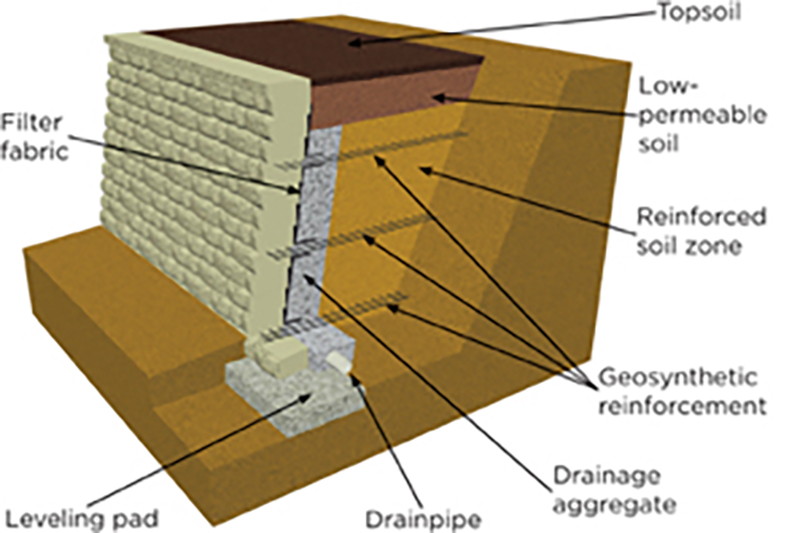

Geosynthetic-Reinforced Retaining Wall
Geosynthetic-Reinforced Retaining Wall
A geosynthetic-reinforced wall needs to be designed by a qualified engineer. With reinforced retaining walls there are (theoretically) no height limitations, they are used in larger applications, and they require more work area behind the structure. The block of soil is stabilized by introducing reinforcement layers into the soil mass behind the facing units. The larger the stabilized soil mass, the more soil can be retained or held back. The geosynthetic reinforcement in the soil extends past the theoretical failure plane and serves to create a large rectangular mass of block and soil, restraining the retained soil.

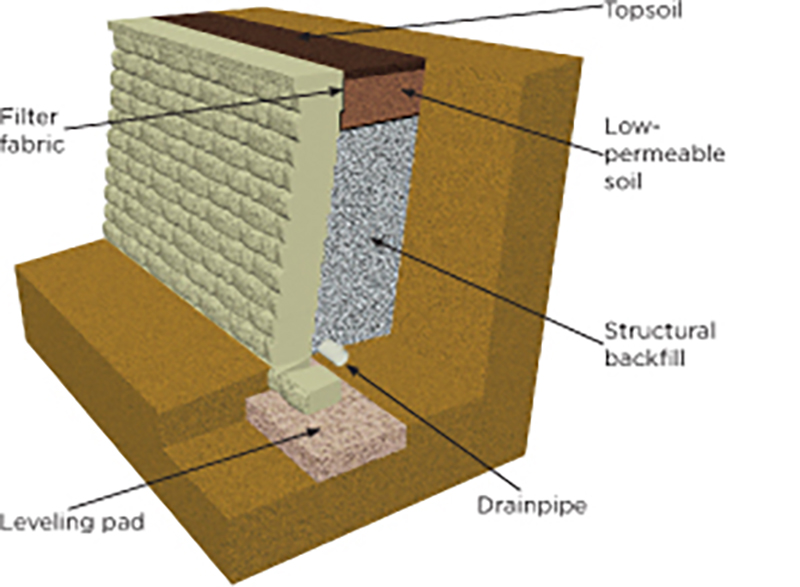

Anchorplex™ Retaining Wall System
Anchorplex™ Retaining Wall System
The Anchorplex Retaining Wall System is a reinforced retaining wall built with Anchor™ products and self-compacting structural retaining wall backfill that meets ANCHOR Diamond, Inc.'s specifications, and that is backed by engineering support tools developed by ANCHOR Diamond.

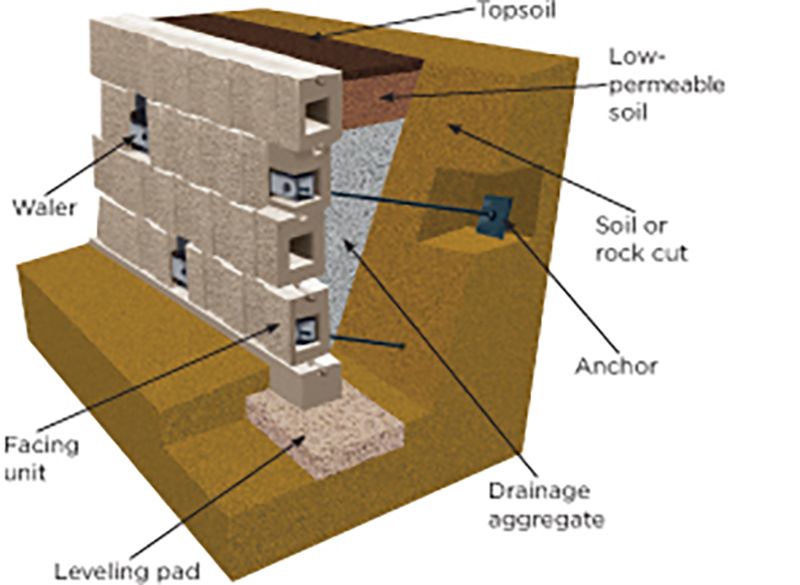

Direct Anchorage System
Direct Anchorage System
A Direct Anchorage System is an installation method that connects earth anchors to retaining wall block that may be used where sufficient space for placement of geosynthetic reinforcement does not exist.
