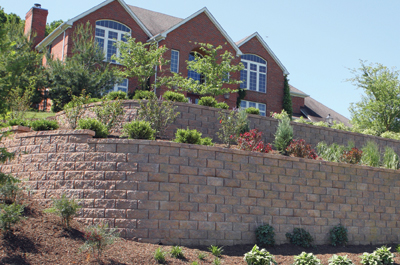

Vertica® Wall System
Face Styles
Heritage
Straight
Stone Cut
Stone Cut Virtual Joint
Beveled
*Not reflective of colors available in your region
-
System Performance
- Max. Gravity Wall Height 0’2”
- System Batter Varies by Manufacturer°
- Min Inside Radius 7’0”
- Min Outside Radius 5’3”
Applications- DOT
- Commercial
- Residential
Blocks
Vertica Beveled Face- Height 0’8”
- Front Length 1’6”
- Depth Varies by Manufacturer
- Weight Varies by Manufacturer lbs
- Setback .28" at 2°; .56" at 4°
Vertica Stone Cut- Height 0’8”
- Front Length 1’6”
- Depth Varies by Manufacturer
- Weight Varies by Manufacturer lbs
- Front Coverage 1.0 sq. ft.
- Setback .28" at 2°; .56" at 4°
Vertica Straight Faced- Height 0’8”
- Front Length 1’6”
- Depth Varies by Manufacturer
- Weight Varies by Manufacturer lbs
- Setback .28" at 2°; .56" at 4°
Block, Left Virtual Joint- Height 0’8”
- Front Length 1’6”
- Depth 0’11”
- Weight 80 lbs
- Front Coverage 1.0 sq. ft.
- Setback .28" at 2°; .56" at 4°
Block, Right Virtual Joint- Height 0’8”
- Front Length 1’6”
- Depth 0’11”
- Weight 80 lbs
- Front Coverage 1.0 sq. ft.
- Setback .28 at 2°; .56 at 4°
Block, Solid-face- Height 0’8”
- Front Length 1’6”
- Depth 0’11”
- Weight 81 lbs
- Front Coverage 1.0 sq. ft.
- Setback .28" at 2°; .56 at 4°°
Cap- Height 0’4”
- Front Length 1’5”
- Depth 0’10”
- Weight 41 lbs
- Front Coverage 0.48 sq. ft.
8" Corner- Height 0’8”
- Front Length 1’6”
- Depth 0’9”
- Weight 101 lbs
- Front Coverage 1.0 sq. ft.
Planter Block- Height 0’8”
- Front Length 1’6”
- Depth 1’6”
- Weight 90 lbs
- Front Coverage 1.0 sq. ft.
- Setback 1°
