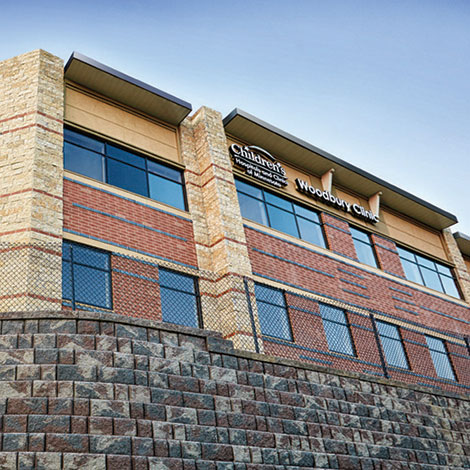

Diamond Pro Stone Cut® Virtual Joint Retaining Wall System

The characteristics of the Diamond Pro Stone Cut Virtual Joint Retaining Wall System make it the proven solution for tall walls, DOT projects, commercial developments, and other critical wall needs. This product provides a rough-hewn, multi-piece look with the installation speed of a single-piece system. DOT approvals vary by state.

Project Applications

  • DOT
  • Terraced Walls

System Performance

Max. Gravity Wall Height: 4’0”

System Batter: 7.1°

Min. Inside Radius: 6’0”

Min. Outside Radius: 4’0”

The Anchorplex™ Retaining Wall System
The Anchorplex™ retaining wall system offers a unique, nonconventional solution to problematic wall construction sites. It is a retaining wall built with Anchor™ products and self-compacting structural backfill specified by Anchor Wall Systems, and backed by engineering support tools developed by Anchor. When used in combination with blocks of the appropriate shape, the structural backfill attaches itself to the wall facing, effectively extending the depth and increasing the mass of the facing. In addition to reinforcing the block facing, the structural backfill zone also serves as the required drainage zone. Using the Anchorplex retaining wall system completely eliminates the need for the construction of a mechanically stabilized earth zone behind the wall facing and requires substantially less excavation than is usually necessary in grid-reinforced wall construction. Because of these efficiencies and the design flexibility afforded with the Anchorplex system, millions of square feet of such walls have been installed and are successfully performing worldwide. Information in this section is typical and should not be used for construction without the seal, when required, of a registered Professional Engineer in the state in which the wall will be constructed. * Timestamps * 0:04 Introducing the Anchorplex retaining wall system 0:17 Explaining structural backfill 0:52 Placing a drain pipe 0:56 Placing structural backfill 1:46 Capping and finishing the wall
View All Videos

Available Units

Actual dimensions and weights may vary from these approximate values due to variations in manufacturing processes. Specifications may change without notice. Please visit your dealer for color options, block dimensions and additional information.

Block, Left Virtual Joint

Height: 0’8”
Front Length: 1’6”
Depth: 1’0”
Weight: 77lbs
Front Coverage: 1.0 sq. ft.
Setback: 1"

Block, Right Virtual Joint

Height: 0’8”
Front Length: 1’6”
Depth: 1’0”
Weight: 77lbs
Front Coverage: 1.0 sq. ft.
Setback: 1"

Block, Solid Face

Height: 0’8”
Front Length: 1’6”
Depth: 1’0”
Weight: 77lbs
Front Coverage: 1.0 sq. ft.
Setback: 1"

8" Corner

Height: 0’8”
Front Length: 1’6”
Depth: 0’9”
Back Length: 1’6”
Weight: 101lbs
Front Coverage: 1.0 sq. ft.

Cap

Height: 0’4”
Front Length: 1’5.25”
Depth: 0’10.4”
Back Length: 1’0”
Weight: 47lbs
Front Coverage: 0.48 sq. ft.

Torpedo® Base Block

Height: 0’4”
Front Length: 1’3.75”
Depth: 0’11”
Weight: 47lbs
Front Coverage: 0.44 sq. ft.
