SISTEMA DE MURO HIGHLAND STONE®

El sistema de muro Highland Stone® de 6” combina bloques de muro de hormigón con aspecto de piedra que presentan ricas texturas, contornos variados y todas las ventajas del localizador de labio trasero patentado, lo que lo convierte en una alternativa fiable y fácil de instalar a los muros de piedra natural. La colección Highland Stone incluye bloques para muros de contención y bloques para muros autoportantes. Cada sistema de bloques viene en tamaños de bloque grande, mediano y pequeño, y se complementa con un bloque de esquina/columna y un bloque de remate..

Face Styles

Heritage

Highland Stone

*Not reflective of colors available in your region

Rendimiento del sistema

Altura máxima del muro de gravedad: 75 mm
Inclinación del sistema: 10.6°
Radio interior mínimo: 2000 mm
Radio exterior mínimo: 1200 mm

Aplicaciones

Jardineras
Patios elevados
Escaleras
Muros de contención en terrazas

Bloques

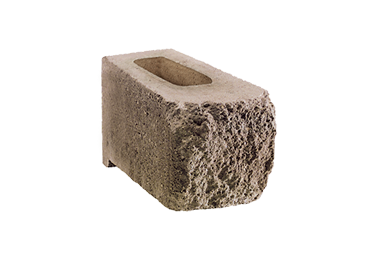

Large Wall Unit M

Altura 150 mm
Longitud delantera 450 mm
Profundidad 300 mm
Peso 35.4 kg
Cobertura frontal .07m
Retranqueo 10.6"

Medium Wall Unit M

Altura 150 mm
Longitud delantera 300 mm
Profundidad 300 mm
Peso 26.8 kg
Cobertura frontal .05m
Retranqueo 10.6"

6" Small block M

Altura 150 mm
Longitud delantera 150 mm
Profundidad 20’10”
Peso 9.5 kg
Cobertura frontal .02m
Retranqueo 10.6"

6" corner/column M

Altura 150 mm
Longitud delantera 450 mm
Profundidad 225 mm
Peso 34 kg
Cobertura frontal .07m

XL Cap M

Altura 75 mm
Longitud delantera 450 mm
Profundidad 325 mm
Peso 20 kg

Shortcut Cap M

Altura 75 mm
Longitud delantera 200 mm
Profundidad 325 mm
Peso 10 kg
Cobertura frontal .02m

Step M

Altura 150 mm
Longitud delantera 400 mm
Profundidad 300 mm
Peso 40.4 kg
Cobertura frontal .06m

Downloads

55 Resources Filter

0 Files Collected (0 kB) View Collected

All Highland Stone® Wall System Products (54)

Brochures (1)
Collect All Highland Stone® Wall System Product Files
Highland Stone Retaining Wall System M SP pdf
Estimating Charts (3)
Highland Stone® 6" Retaining Wall System Product Quantity Estimator pdf
Highland Stone® Retaining Wall System Estimating Chart for Geosynthetic Reinforcement pdf
Highland Stone® Retaining Wall System Structural Backfill Estimating Chart pdf
Instructions (1)
Multi-Piece Instructions pdf
Construction Details (49)
Highland Stone® Retaining Wall System Alternate Drop Structure Behind Wall pdf
Highland Stone® Retaining Wall System Drain Pipe Through Toe Slope pdf
Highland Stone® Retaining Wall System Inside Corners pdf
Highland Stone® Retaining Wall System Inside Curves pdf
Highland Stone® Retaining Wall System Outside Angles pdf
Highland Stone® Retaining Wall System Outside Corners pdf
Highland Stone® Retaining Wall System Outside Curves pdf
Highland Stone® Retaining Wall System Typical Cross Section With Parallel Utilities pdf
Highland Stone® Retaining Wall System Typical Details for Large Utilities Through Wall pdf
Highland Stone® Retaining Wall System Typical Details for Small Utilities Through Wall pdf
Highland Stone® Retaining Wall System Typical Details for Utilities Below Wall pdf
Highland Stone® Retaining Wall System Typical Drop Structure Behind Wall pdf
Highland Stone® Retaining Wall System Wall Abutting Structure pdf
Cap Installation Details pdf dwg
Highland Stone® Retaining Wall System 45-Degree Inside Corner Detail pdf dwg
Highland Stone® Retaining Wall System 90-Degree Inside Corner With Grid pdf dwg
Highland Stone® Retaining Wall System 90-Degree Outside Corner Wall Detail pdf dwg
Highland Stone® Retaining Wall System 90-Degree Outside Corner With Grid pdf dwg
Highland Stone® Retaining Wall System All Product CAD Files dwg
Highland Stone® Retaining Wall System Alternate Fence Cross Section pdf
Highland Stone® Retaining Wall System Cap Block Details pdf dwg
Highland Stone® Retaining Wall System Capping Details pdf
Highland Stone® Retaining Wall System Daylight Drain Tile Through Slope pdf dwg
Highland Stone® Retaining Wall System Drain Pipe Through Wall Face pdf
Highland Stone® Retaining Wall System Drain Tile Through Wall Face pdf dwg
Highland Stone® Retaining Wall System Individual Block Details pdf
Highland Stone® Retaining Wall System Inside Angles pdf
Highland Stone® Retaining Wall System Inside Curve Details pdf dwg
Highland Stone® Retaining Wall System Outside Curve Details pdf dwg
Highland Stone® Retaining Wall System Proper Excavation Oversizing pdf dwg
Highland Stone® Retaining Wall System Reinforced Cross Section With Sidewalk pdf
Highland Stone® Retaining Wall System Reinforced Cross Section With Slope pdf
Highland Stone® Retaining Wall System Reinforcement Connection Detail pdf dwg
Highland Stone® Retaining Wall System Reinforcement Connection Detail pdf
Highland Stone® Retaining Wall System Typical Base Preparation pdf dwg
Highland Stone® Retaining Wall System Typical Base Preparation pdf
Highland Stone® Retaining Wall System Typical Base Step-Up pdf
Highland Stone® Retaining Wall System Typical Drainage Swale Cross Sections pdf
Highland Stone® Retaining Wall System Typical Elevation View pdf
Highland Stone® Retaining Wall System Typical Excavation Oversizing Cross Section pdf
Highland Stone® Retaining Wall System Typical Fence Cross Section pdf
Highland Stone® Retaining Wall System Typical Gravity Cross Section pdf
Highland Stone® Retaining Wall System Typical Groundwater Intrusion Cross Section pdf
Highland Stone® Retaining Wall System Typical Guide Rail Cross Section pdf
Highland Stone® Retaining Wall System Typical Reinforced Cross Section pdf
Highland Stone® Retaining Wall System Typical Shoreline Cross Section pdf
Highland Stone® Retaining Wall System Typical Step-Up Detail pdf dwg
Highland Stone® Retaining Wall System Typical Terrace Connection pdf
Highland Stone® Retaining Wall System Typical Terrace Cross Section pdf
