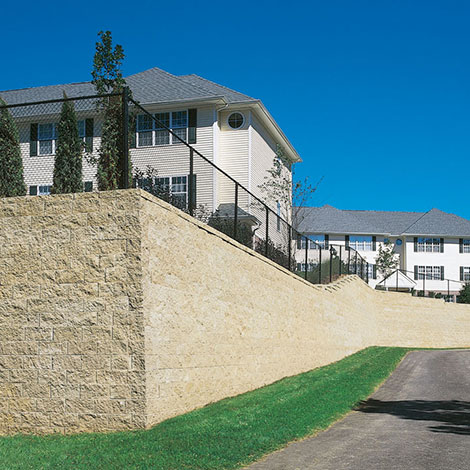

Vertica® Retaining Wall System, Straight Face
For commercial endeavors, the Vertica retaining wall system is the perfect choice for maximizing valuable land space on large-scale projects while providing strength, durability and a near-vertical appearance. Our patented locator lug provides quick, uniform setback for reduced labor and the Vertica retaining wall system features warm earth-tone colors and a rugged, rock-like texture. The straight face has a minimum outside radius of 8 feet, 6 inches and a minimum inside radius of 5 feet, 6 inches. DOT approvals vary by state.
Project Applications
- DOT
- Terraced Walls
System Performance
Max. Gravity Wall Height: 3’4”
System Batter: 2 or 4°
Min. Inside Radius: 7’0”
Min. Outside Radius: 5’6”
Installing Anchorplex™ Retaining Wall Blocks with Vertica Wall Systems
The Anchorplex™ concrete retaining wall block system offers a unique solution to problematic wall construction sites. This video, featuring the Vertica wall system, shows the ease of Anchorplex retaining wall installation. Learn more at www.anchorwall.com.
Available Units
Actual dimensions and weights may vary from these approximate values due to variations in manufacturing processes. Specifications may change without notice. Please visit your dealer for color options, block dimensions and additional information.
Block
Height:
0’8”
Front Length:
1’6”
Depth:
Varies by Manufacturer
Weight:
Varies by Manufacturer
Front Coverage:
1.0 sq. ft.
Setback:
Varies by Manufacturer
Cap
Height:
0’4”
Front Length:
1’5.25”
Depth:
0’10.4”
Back Length:
1’0”
Weight:
41lbs
Front Coverage:
0.48 sq. ft.
8" Corner
Height:
0’8”
Front Length:
1’6”
Depth:
0’9”
Back Length:
1’6”
Weight:
101lbs
Front Coverage:
1.0 sq. ft.
